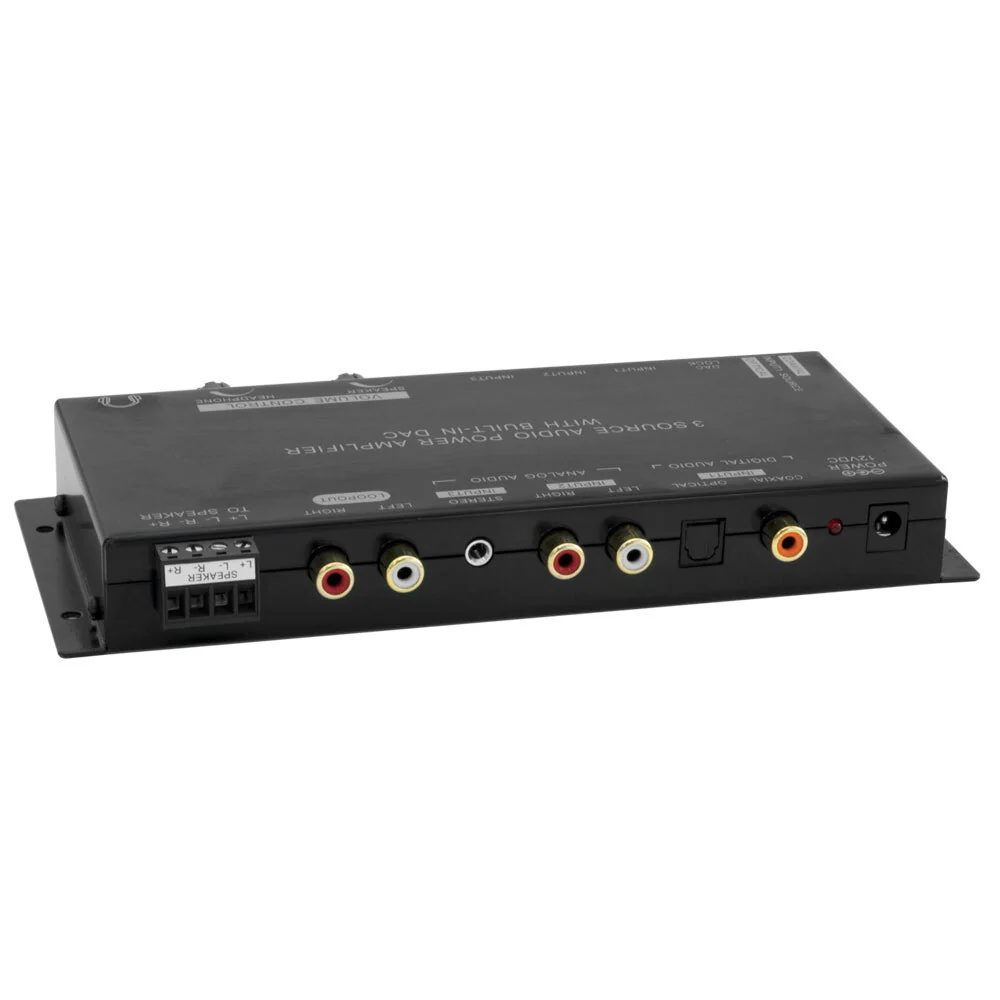

Pro2 Pro1299 3 Source Audio Power Amplifier with Built-In DAC Speaker Protection

Speaker Audio Power Amplifier

• Amplifier Type: Stereo D-Class

• Output power:15W(RMS) per channel for 4ohm load, 15W(RMS) for both channels for 8ohm load

• THD+N :0.06 % (@ RL=8 ohm, f = 1 kHz)

• Minimum Load Resistance:4 ohm

• Includes Speaker Protection circuit.

Earphone Audio Power Amplifier

• Output power:105mW(rms) per channel

• THD+N :0.05 % (@ RL=16 ohm, f = 1 kHz)

• Minimum Load Resistance :16 ohm

Digital To Analog Converter(DAC)

• Digital Input Type: Coaxial & Optical

• Support Digital Audio Format: LPCM

• Input Impedance: 75 ohms

• Frequency Response: 32 - 192KHz sample rate
